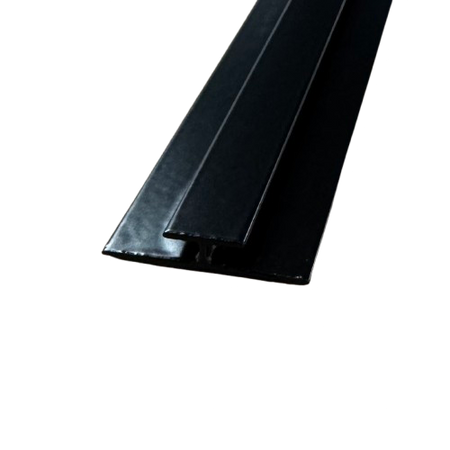

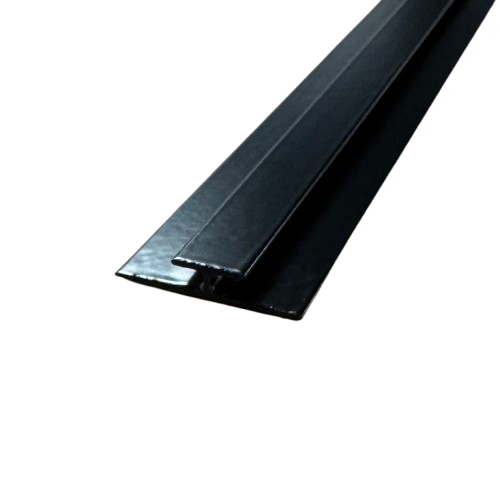

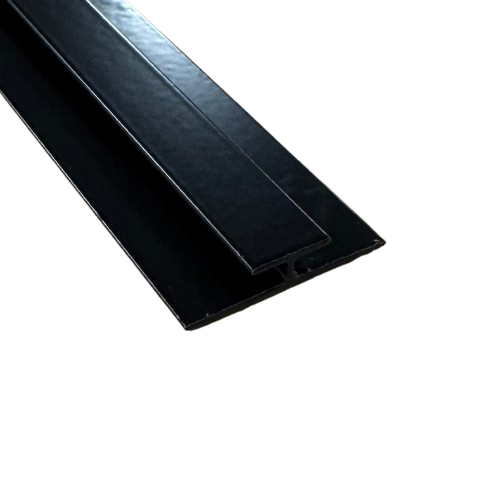

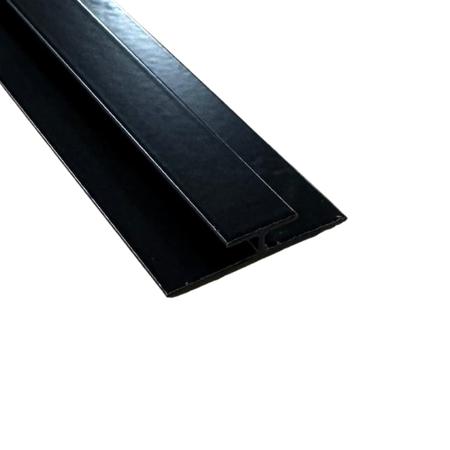

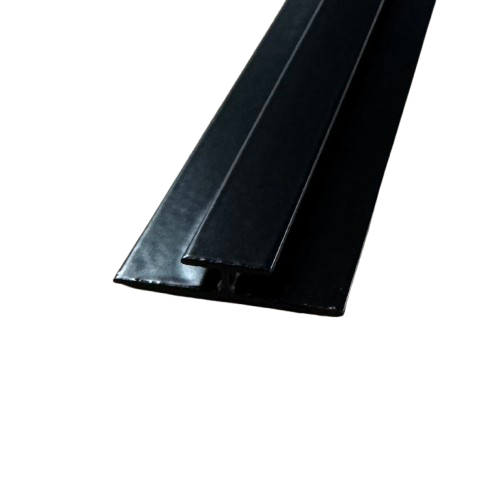

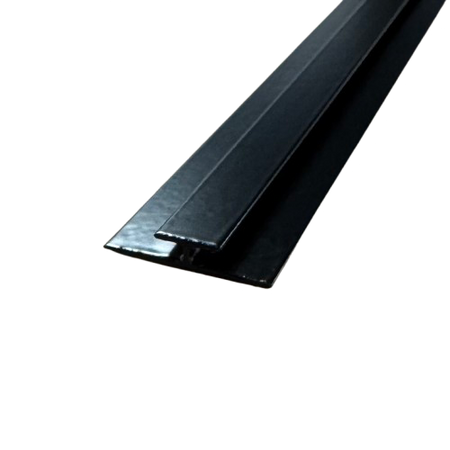

H Channel Aluminum Sheet Divider 1/8" Inside, 48-92" | Mill Finish or Black

Join and secure aluminum panels with this mill finish aluminum H-channel sheet divider. Designed with a 1/8" interior channel depth, this extrusion provides a clean, professional transition between panels while adding strength and stability to your project. Commonly used in cargo trailers, RVs, wall panel systems, enclosures, and fabrication applications.

Shipping: Calculated at checkout
Handling Time: 3 business days

Product Specifications

• Length: 48"-92"

• Interior Channel Depth: 1/8"

• Material Thickness: 1/16"

• Total Height: 1/4"

• Back Side: 1 1/4" Wide

• Front Face: 1/2" Wide

• Material: Aluminum

• Finish: Mill Finish

• Profile: H-Channel Sheet Divider


Product Description

This aluminum H-channel sheet divider is an excellent solution for joining two panels while maintaining a finished appearance. Manufactured from durable aluminum, it offers excellent corrosion resistance and long-lasting performance in both indoor and outdoor environments.

The 1/8" channel depth is designed to accept compatible panel materials, creating a secure connection while helping align adjoining sheets. Its lightweight construction makes installation simple while providing added rigidity to panel assemblies.

Ideal for trailer interiors, RV renovations, wall systems, and general fabrication projects where a clean panel-to-panel connection is required.

Features & Benefits

• Designed to join and separate adjacent panels

• Durable aluminum construction

• Corrosion-resistant mill finish

• Lightweight and easy to install

• Clean, professional appearance

• Ideal for trailer, RV, and fabrication applications

• Helps align and support panel connections

Need Custom Lengths?

We carry a wide selection of aluminum trim, channels, sheet, and trailer components. Contact us if you need assistance selecting the correct profile for your application.

MIX & MATCH DISCOUNTS

SHEET:

DISCOUNT INCLUDES FULL SHEETS OF DIAMOND PLATE (.025”, .045”, & .050”), STUCCO, ALUMI-TEC AND ALUMINUM PAINTED SHEET (.030”, .040”, & .050”)
10-19 SHEETS = 10% OFF
20-39 SHEETS = 20% OFF
40+ SHEETS = 40% OFF

TRIM:

DISCOUNT APPLIES TO FULL SIZE LENGTHS TRIMS, ANGLES, TUBES ETC (62"-93")
20+ PIECES = 10% OFF
40+ PIECES = 20% OFF
60+ PIECES = 30% OFF

ELIGIBLE ITEMS AUTOMATICALLY APPLY DISCOUNT WHEN ADDED TO CART

*full sheets are sheets 48-49" wide x 48+" long

Handling Time: 1-3 Business Days

Large orders of sheet or trim can be shipped through an LTL carrier either shipped flat or in large boxes depending on the order and order quantity. If freight is not specified when ordered or during checkout we will use our discretion to package as safe as possible.
